Electrical Engineering and Automation for Cement Terminal in Sweden

05/10/2012 | Editor: Marcel Dröttboom

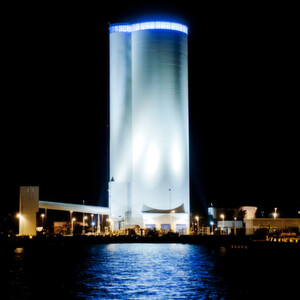

Fig. 1: Ibau hamburg led the construction of a cement terminal for Cements HeidelbergCement Group at the port of Malmö, Sweden, including a 100 metre tall multi-chamber silo.
Gallery: 3 Pictures
Fig. 1: Ibau hamburg led the construction of a cement terminal for Cements HeidelbergCement Group at the port of Malmö, Sweden, including a 100 metre tall multi-chamber silo. (Picture: Haver & Boecker)

As a general contractor, our subsidiary company Ibau Hamburg led the construction of a cement terminal for Cementa HeidelbergCement Group at the port of Malmö, Sweden, including a 100 metre tall multi-chamber silo.

The silo is fed by a mechanical-pneumatic ship unloading system, is 100 meters tall, and has a diameter of 26 metres and contains 30,000 tonnes of cement. Automatic loading of tanker trucks and wagons is done 365 days a year. (Fig. 1)

Haver & Boecker supplied the complete electrical system and automation for this cement plant. The systems include a PCS7 process control system with Cemat, as to HeidelbergCement standard, a gas-isolated medium voltage switchgear, 11 kV, a dry-type transformer 1600 kVA, and low voltage main distributor with compensation.

Also included are the switching and control cabinet with S7-400/ET 200M, as to HeidelbergCement standard, electrical grounding and lightning protection, cable and installation material, IT network and infrastructure, as well as video-monitoring of the loading stations, entrances and exits, interior and exterior lighting, and engineering and complete electrical installation and start-up.

During the planning phase, Ibau worked in close cooperation with Heidelberger Technology Center in Brussels and it was decided that the control room in the multi-chamber silo would be moved to Level 1. This offered the advantage of considerably reduced cable paths through silo walls. Because space for the switching and control cabinets, energy distribution and transformers was limited, the maintenance-free, gas-isolated medium switchgear was selected. (Fig. 2)

The electrical installation involved a number of demanding challenges for the personnel. Installation of the cable works and laying the cable in the bucket conveyor tower – from Level 0 to 100 metres – required special cranes and had to be carried out by workers who weren’t afraid of heights. (Fig. 3)

One challenge for the automation systems supplied was adapting the PCS7 process control system to the silo processes so that clear and well-arranged process groups resulted and thus allowed easy operation and rapid fault detection (Fig. 4). The tanker trucks and wagons are automatically loaded according to the shipping orders thanks to the data exchange between the process control unit and the shipping system provided by Cementa. By cooperating closely with Heidelberger Technology Center Brussels, the processes were optimised so that the terminal could be operated without operating personnel.

After the start-up of the facility, the terminal was successfully handed over to Cementa in March, 2012, after almost 2 years of planning and construction work.
